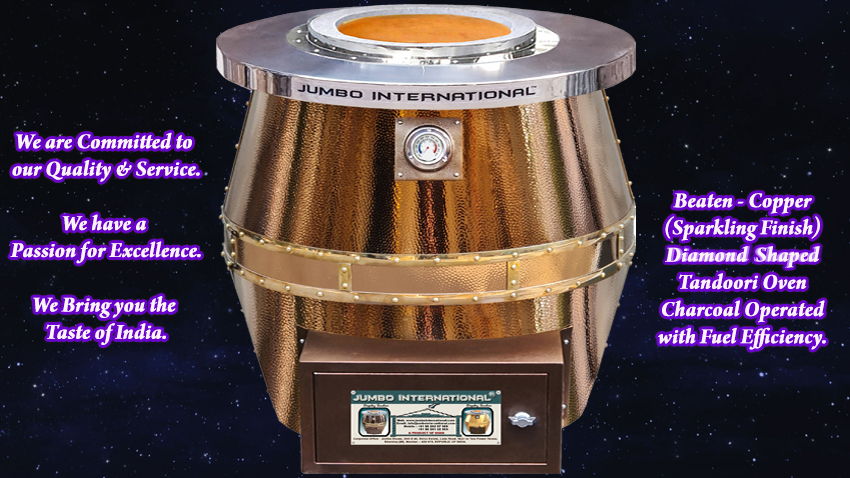

BEATEN COPPER (SPARKLING FINISH) DIAMOND TANDOOR
(CHARCOAL OPERATED)

  1. Diamond Shaped Body: The Oven has a distinctive Diamond-Shaped body crafted with Beaten – Copper Sparkling Finish sheets. These sheets are designed to never turn black, maintaining a decent appearance and sophisticated look.
  2. Reinforced Cladding: The outer cladding of the oven is reinforced with inner mild steel (M.S.) cladding, providing additional strength and durability.
  3. Standalone Unit with Floating Counter: The oven is a standalone unit with an independent floating counter designed for worktop utilities, adding convenience to the cooking area.
  4. Ceramic-Based Earthen Clay Oven: Inside the oven, a suitable Ceramic-Based Earthen Clay Oven is installed with thermal insulators. This ensures efficient heat retention and cooking performance.
  5. Insulation Blankets and Stainless Steel Floating Counter: The top surface is covered with insulation blankets overlapped with a removable type Stainless Steel Floating Counter. This design aids in heat insulation and provides a functional worktop.
  6. Stainless Steel Border with Heat Resistant Stone: The mouth of the Tandoor is lined with a Stainless Steel border featuring a 1” depression. This design includes a heat-resistant stone to prevent direct heat transfer onto the steel floating counter, enhancing safety and protecting the counter’s surface.
  7. Aesthetic Appeal for Show Kitchens: These units are specifically designed for Show Kitchens and Island Kitchens, emphasizing their tremendous aesthetic appeal.

This description suggests a well-designed and aesthetically pleasing Tandoor oven, combining traditional elements like the use of charcoal with modern features such as thermal insulation and a floating counter. The emphasis on appearance, durability, and safety makes it suitable for show kitchens and island kitchens.



WOODEN CHARCOAL OPERATED

Hammered Copper Diamond Tandoor : BCDT.1C

HT DIA MOUTH
875 x 850 x 380 (mm)

* Diameter Measures the Floating Counter
* HT Includes top Rim of 25 mm Mouth Elevation

Please Note : Due to Copyright infringements, Illegal use of Product Images and Specifications by Fraudulent people, the Spec Sheets are Password Protected. To request for Password, please Contact us at info@jumbointernational.com with your Company Details and Contact Numbers.

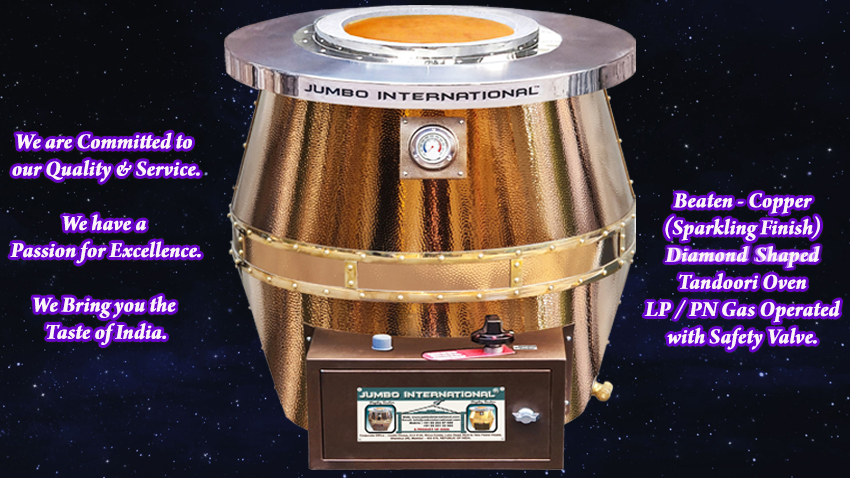

BEATEN COPPER (SPARKLING FINISH) DIAMOND TANDOOR
(LP / PIPED NATURAL GAS OPERATED)

  1. Diamond Shaped Body: The oven has a unique Diamond-shaped body fabricated with Beaten Copper sheets that give it a sparkling finish. This design adds to its aesthetic appeal and provides a sophisticated look.
  2. Double Jacketing System: The mild steel body inside acts as a double jacketing system, protecting the outer body from excessive heat. This feature enhances safety and durability.
  3. Standalone Unit: The oven is a standalone unit with an independent floating counter designed for worktop utilities, making it convenient for various kitchen tasks.
  4. Ceramic-Based Earthen Clay Oven: The oven is equipped with a suitable Ceramic-Based Earthen Clay Oven. Thermal insulation is provided to ensure efficient heat retention.
  5. Low-Pressure LP Gas Burner: A low-pressure LP Gas burner is fixed at the base of the oven. It is complemented by a 3-flame industrial Pilot Burner with a Thermocouple and Ignition Sparker for Piezo Ignition.
  6. Gas Safety Control Valve: The front panel features a Gas Safety Control Valve that allows the user to control the gas intensity, enhancing safety during operation.
  7. Push Button Ignition Lighter: For easy and safe ignition of the burner, a push-button ignition lighter with a waterproof cap is provided.
  8. Heavy-Duty Perforated M. S. Baffle Plates: These plates are placed on the Burners to enable the deflection of heat evenly on all sides of the clay oven, preventing cold spots.
  9. Volcanic Lava Stones: Supplied to be placed on the Baffle Plates, these stones generate an authentic Charcoal aroma inside the oven, enhancing the cooking experience and to the taste buds.
  10. Temperature Gauge: A temperature gauge is provided for monitoring the running temperature of the oven, allowing precise control over the cooking process.
  11. Flexible 4-ft. S.S. Hose with Pressure Regulator: A flexible Stainless Steel hose with a Pressure Regulator (preset to 0.5 psig) is provided to connect the oven to a nearby gas bank, ensuring a safe and controlled gas supply.
  12. Imported Components: Vital Gas components are imported from various European countries, thermocol insulation and burners are imported from China, Lava Rocks are imported from Iceland, and the temperature gauge is imported from the USA, highlighting the global sourcing of high-quality components.



Overall, this LP Gas-Operated Oven seems to be a high-end and aesthetically pleasing appliance designed for show kitchens with a focus on safety, functionality, and a unique cooking experience.

LP / PN GAS OPERATED

Hammered Copper Diamond Tandoor : BCDT.1GS

HT DIA MOUTH
875 x 850 x 355 (mm)

* Diameter Measures the Floating Counter
* HT Includes top Rim of 25 mm Mouth Elevation

Please Note : Due to Copyright infringements, Illegal use of Product Images and Specifications by Fraudulent people, the Spec Sheets are Password Protected. To request for Password, please Contact us at info@jumbointernational.com with your Company Details and Contact Numbers.
